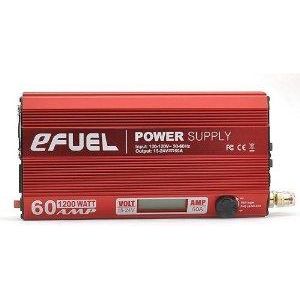

eFuel 60A 1200W 15-24V Variable DC Power Supply

eFuel 60A 1200W 15-24V Variable DC Power Supply

Vendor
eFuel
Regular price
$249.99
Sale price
$249.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

The eFUEL switching DC Power Supply is designed to use household AC power source to power equipments that require DC power. The eFUEL converts standard household power 100-120V AC to 15-24V DC power and can supply up to 60 amperes of continuous power. The maximum output current is regulated by the output power of this power supply and does not exceed 60 Ampere. Maximum Current = 1200W divide by output voltage. ( example. DC20V output, maximum current = 1200W / 20V = 60A; DC24V output, maximum current = 1200W / 24V = 50A.)

Features:
* One main DC power outputs up to 60 amperes, and three more output channels with ON/OFF switch that deliver up to 10 amperes.
* Output voltage adjustable from 15-24V
* Large backlit LCD indicates voltage and current amperes output
* Smart cooling fan
* Over temperature protection
* Over loading protection
* Short circuit protection

Specifications:
Total Output Power.........................................................................................................1200Watts
Voltage……………………………………………..…..........100-120V AC (PSU 60ADE)


Input AC Frequency………………………………………………….……….….………50Hz/60Hz
Output Voltage……………………………………….……..……………..15-24V DC±1V
Output Current……………………………...…….60A±3A @ 20V DC / 50A±3A @ 24V


DC
Current Overload Protection…………………………………………..………............≤63A
Input Fuse……………………..........100-120V AC 25A Fuse

Output Voltage Ripple……………………………………..………………..……<200MV
Power Efficiency……………………………………………………………..………>85%
Power Factor………………….…………………………………………..……………>0.7
Over Temperature Protection…………………………………….…………...……..<65C
Cooling Method……………………………………………….………………Cooling Fan
Operating Temperature………………………………………………………………0-40C
Operating Humidity……………………………….…………………………………0-90%
Dimensions (L*W*H)………………………………………………….....305x140x78mm
Net weight………………………………………….……………………..…………2.52kg
